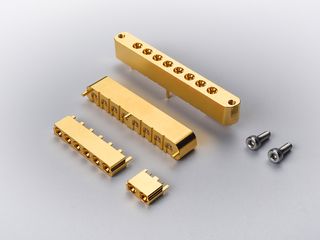

8P

Multi Coax Channel.

Transmission Support up to 100Gbps

Smooth Bore Design for Easy Mating

Highest Density and Lowest Loss

ELECTRICAL

ITEM

FREQUENCY PERFORMANCE
 IMPEDANCE 0 ~ 40GHz   50Ω
RETURN LOSS 0 ~ 40GHz -18dB Max.
INSERTION LOSS  0 ~ 40GHz   -0.2dB Max.

CROSS-TALK



0 ~ 35GHz  40 dB Max.
 35 ~ 40GHz 35 dB Max.



MECHANICAL / ENVIRONMENT

ITEM

PERFORMANCE

FORCE TO ENGAGE / DISENGAGE 6 ~27N

TEMPERATURE RANGE

-55° C ~ 125°C

DURABILITY (MATING)

 500 cycles Min.
