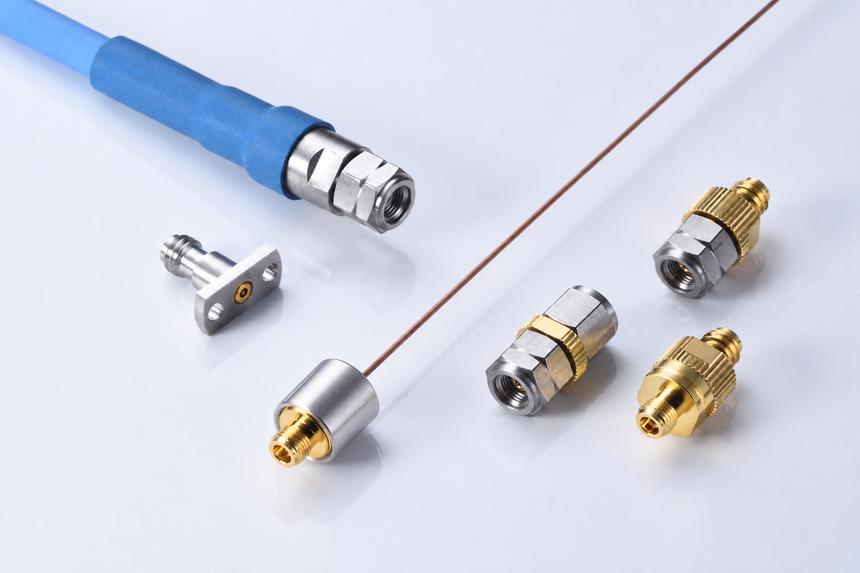

The 1.35 mm Connectors, using for up to 90GHz ( E band).

＊High-performance RF measurements

＊Self-driving vehicles

＊5G applications

The 1.85mm was designed to go beyond the SMA interface constraints, and as a result is NOT SMA compatible. Instead, maximum performance to the highest possible frequency that the geometry would allow, along with repeatable measurements after hundreds or even thousands of interconnects, were the design goals.

The connector outer conductor ID is 1.85 mm, and OD is 4.7 mm, allowing compatibility, so that the 1.85mm connector mates with the 2.4mm connector and has the same ruggedness. It’s a 50 Ohms connector with performance up to 67 GHz.

The 2.4mm series was designed to eliminate the fragility of the SMA and 2.92mm connectors by increasing the outer wall thickness and strengthening the female fingers.
The outer contact ID is 2.4 mm, and OD is 4.7mm.
The performance is up to 50 GHz.

The 2.92mm series was designed with highly rugged physical interfaces in mind that would mate with 3.5mm and SMA dimensions. The 2.92mm series use an air dielectric, with the performance up to 40 GHz. The outer contact ID is 2.92 mm, and OD is 4.55 mm.

The 3.5mm series was designed with highly rugged physical interfaces in mind that would mate with SMA dimensions, allowing thousands of repeatable connections. The performance is up to 34 GHz.

The outer contact ID is 3.5 mm, and OD is 4.55 mm. The 3.5mm series is compatible with 2.92mm and SMA series. When mated with SMA and other precision SMA type connectors the performance is limited by the connector with lesser performance.

Features

• 2 million times electrical + mechanical performance Min.
• High stability I.L. < 0.03dB



Features

• Significant durability with ruggedized connectors
• Remarkable phase and loss stable cable assemblies
• 3.5mm, and 2.92mm 2.4mm and 1.85mm test ports options
• Shorter lead-time process
• Suitable for all brands of Value network analysis.

Frontlynk offers various End Launch Connectors for engineers who need to install the connection between cables and printed circuit board (PCB). To reach different frequency requirements, our company provides wider ranges from SMA (26.5GHz), 3.5mm (34GHz), 2.92mm (40GHz), 2.4mm (50GHz), 1.85mm (67GHz), to 1.0mm(110GHz).

The SMPM connectors are 20% smaller to SMP connectors and have frequency ranges up to 65 GHz. The SMPM connectors were developed to fit for smaller and higher frequency connectors than the SMP.

The SMPM connectors provide two different levels of retention force: Smooth Bore and Full Detent. Bo-Jiang SMPM connectors are compatible with all kinds of SMPM connectors, including Corning Gilbert's GPPO™ products.

The SMPM connectors are "Push-on" designed, easy to mate connectors, especially for PCB used. Applicable for: Aerospace, Broadband, Instrumentation, Routers, Telecom, High-speed Applications, Cable, PC-Board, Surface-Mount Connections.

Frontlynk developed the SMP series to fulfill the customer's demands for higher-frequency and miniaturized connectors. These are easy snap-on connectors; operatible up to 40 GHz.

These SMP connectors are ideal for board to board interconnections by joining plugs on different boards with a jack-to-jack adaptor in between.

The SMP interface provides three different levels of retention force: full detent, limited detent, and smooth bore.
Full detent is often used for connections with highest retention, limited detent is only for retaining the bullet, and smooth bore is for the lowest retention.

SMA connectors are subminiature units designed to provide high electrical performance for microwave applications up to 18 GHz.

Constructed with Brass or high quality Stainless Steel, SMA connectors ensure excellent durability and mechanical strength.

Frontlynk Surge Arrester series are using for N and 7/16 type.

High Performance from DC to 3 GHz, and 2 to 6 GHz.

Frequencies:

• 0GHz~3GHz
• 2GHz~6GHz
• 0GHz~6GHz

Gas Tube Voltages:90V~350V

SSMA connectors are micro-miniature, high-frequency connectors with threaded mating (smaller version of SMA series), designed to MIL-PRF-39012 requirements.

SSMA connectors provide mechanical reggedness, no matter how small the connector is.

SSMB Serious in a microminiature connectors with snap-on mating (smaller version of SMB series), designed to MIL-PRF-39012 requirements. The design permits rapid connection and disconnection in small spaces, even in inaccessible locations.

SSMB series provides excellent electrical performance in a microminiature footprint. While the snap-on mating interface allows quick installation and dense packaging, the excellent electrical performance of the SSMB series allows it to be used in many applications as an alternative to larger connectors like SMAs.

SMB series is a semi-precision and subminiature device that provides repeatable electrical performance to 4 GHz. SMB family of connectors provides a means of quick connect/disconnect through a snap-on type coupling. SMB connectors are popularly used in telecommunications, test equipment and instrumentation.

BNC connectors are characterized by their 2-stud quick disconnect bayonet lock coupling arrangement. They are suitable for a wide range of systems, including radio telecommunication systems, medical equipment, computer network and test instrumentation.

N connectors are medium size, high quality connectors with a coupling screw system designed for use at frequencies up to 11 GHz.

They are most suitable for use in laboratory tests, satellite TVS, MATVS and other sophisticated electronic applications where high performance and precision are necessary.

TNC connectors are designed with a highly reliable threaded coupling to ensure additional protection against shocks and vibrations.

They are dimensionally and electrically similar to the BNC series, and are especially suitable for use in vibration-exposed equipment such as commercial and military radio telecommunication systems, as well as avionic equipment where a highly durable coupling is needed.

TNC connectors are also widely used in medical equipment, computers and test instrumentation.

BMA Series is an easy use slide-on connector, has 50 Ohms impedance and is suitable for high performance microwave applications up to 18 GHz.

BMA Series preserve mechanical and electrical performance with interfacial misalignment features. The connector used for wireless infrastructure, satellite equipment and test and measurement.

To cope with growth demands in telematics and multimedia applications for modern automobile, Automotive Industries created a high-performing, cost-effective RF connector based on the FAKRA and USCAR standards. Based on SMB interface, FAKRA connectors include a plastic housing and are designed with multiple colored codes for easy identification. FAKRA connectors are designed to operate up to 4GHz and for applications of particular mechanical and environmental requirements of the automobile industry such as Digital Satellite Radio (SDARS), GSM, GPS…

MMCX series is intended for use in applications where the smallest dimensions have to be achieved. MMCX connectors can be used in applications from DC to 6 GHz and aim to meet the expanding needs of surface mount coaxial interconnection system as well as the conventional connector styles for flexible and semi-rigid cables.

MCX miniature snap-on connectors have 50Ω impedance structure operates in a frequency range up to 6 GHz.

MCX series is ideal for applications of GPS, wireless communication and test instrumentation.

FME connectors were originally developed for the European wireless market, but have recently seen an increase in popularity globally.

Applications are in the GPS, mobile and WLAN sectors of the communications industry.

F series is economically priced connectors specially designed for use with NTSC TV ANTENNA and other similar applications.

Countries using the NTSC System include: The Bahama Islands, Canada, America, Japan, Korea, Mexico, Taiwan, the Philippines, and the U.S.A.
