End Launch Connector

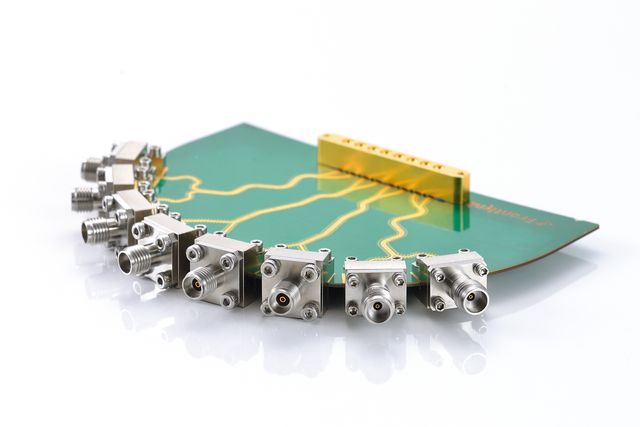

情境-END LAUNCH SERIES
Frontlynk offers various End Launch Connectors for engineers who need to install the connection between cables and printed circuit board (PCB). To reach different frequency requirements, our company provides wider ranges from SMA (26.5GHz), 3.5mm (34GHz), 2.92mm (40GHz), 2.4mm (50GHz), 1.85mm (67GHz), to 1.0mm(110GHz).

 Ultra Small series.

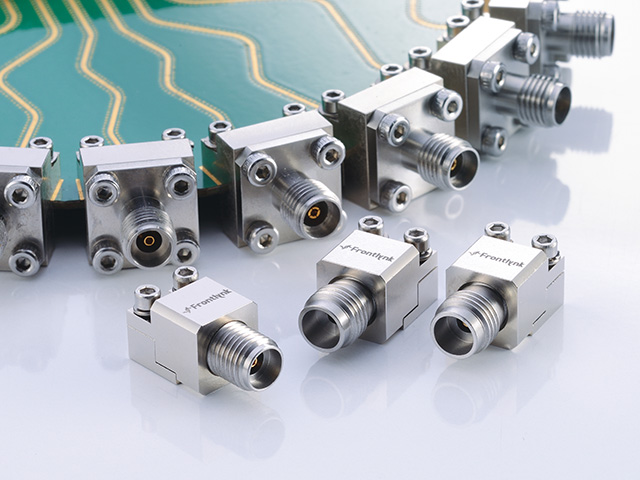

Img20264 P

Specification:

  SMA 3.5mm 2.92mm 2.4mm 1.85mm 1.0mm
Gender PLUG JACK PLUG JACK PLUG JACK PLUG JACK PLUG JACK PLUG JACK
Frequency 26GHz 34GHz 40GHz 50GHz 67GHz 110GHz
Impedance 50Ω 50Ω 50Ω 50Ω 50Ω 50Ω
VSWR 1.2Max. 1.2Max. 1.2Max. 1.2Max. 1.2Max. 1.38Max.

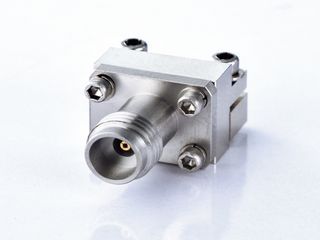

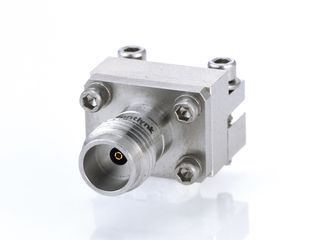

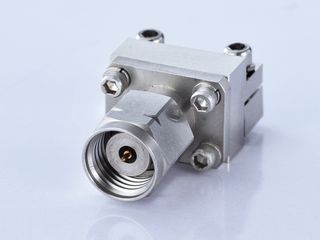

Standard Profile

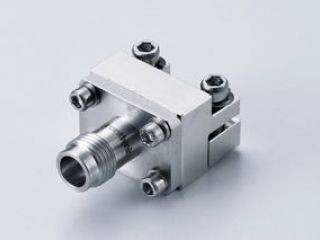

Low Profile

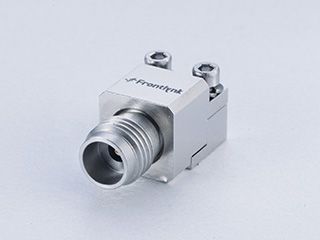

Ultra Small
