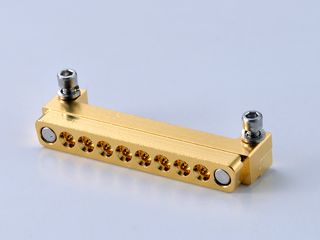

Multi Coax Channel.
Transmission Support up to 100Gbps
Smooth Bore Design for Easy Mating
Highest Density and Lowest Loss
| ELECTRICAL | ||||||
|---|---|---|---|---|---|---|
| TYPE | PCB Mount | End Launch | ||||
|
ITEM |
PERFORMANCE | |||||
| FREQUENCY | 0 ~ 40GHz | 0 ~ 50GHz | 0 ~ 67GHz | |||
| IMPEDANCE | 50Ω | |||||
| RETURN LOSS | -18dB Max. | -15dB Max. | -17dB Max. | |||
|
CROSS-TALK |
0 ~ 35GHz | 40dB Max. | 0 ~ 40GHz | 40dB Max. | 0 ~ 67GHz | 30dB Max. |
| 35 ~ 40GHz | 35dB Max. | 40 ~ 50GHz | 35 dB Max. | - | ||
| MECHANICAL / ENVIRONMENT | |
|---|---|
|
ITEM |
PERFORMANCE |
| FORCE TO ENGAGE / DISENGAGE | 6 ~27N |
|
TEMPERATURE RANGE |
-55° C ~ 125°C |
|
DURABILITY (MATING) |
500 cycles Min. |
| Contact Pin OD. (mm) | Report | Drawing |
|---|---|---|
| 0.127 FL55P7-LS502BD003 | ||
| 0.18 FL55P7-LS502BD004 | ||
| SMPS FL45P7-LS502ND001 |
